High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator

Brand Name : Giant Precision

Model Number : LHT-14-XX-U-IV

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : To Be Negotiated

Payment Terms : T/T

Supply Ability : 20000 Sets per Month

Delivery Time : 3-4 Weeks

Packaging Details : Carton Box

Product : Model 14 Harmonic Reducer

Components : Wave Generator, Flexspline, Circular Spline

Reduction Ratio : 50:1, 80:1, 100:1, 120:1

Backlash : ≤20 Arc Sec

Maximum Input Speed : 8500 r/min

Average Input Speed : 3500 r/min

Design Life : 15000 hours

Weight : 0.66kg

Application : Robotics, Aerospace, Medical Equipment

Warranty : 1 Year

Contact Now

High Torque Capacity Sealed Harmonic Gears

Product description

Strain Wave Reducer is a kind of transmission that relies on a wave generator togenerate controllable elastic deformation waves in flexible gears to achievemotion and power transmission. The harmonic reducer was born during thelunar exploration period of the United States and the Soviet Union in the lastcentury,mainly to solve the urgent need of aerospace motion agencies forreducers with compact structure, light weight, small size, large reduction ratio,high transmission efficiency and high transmission precision.

High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator

Features

1. High Precision and Repeatability: Essential for applications requiring exact positioning and control.

2. Compact Size: Saves space, allowing for more compact and lightweight designs.

3. High Torque-to-Weight Ratio: Provides strong torque output without significant weight.

4. Low Wear and Long Life: Due to the rolling contact of teeth, which minimizes wear and extends the lifespan of the drive.

5. Smooth Operation: Provides smooth and consistent motion, ideal for delicate tasks.

Specification

Model Reduction ratio Rated torque at 2000r/min input Permissible peak torque at start and stop Permissible maximum value for average load torque Permissible maximum momentary torque Permissible maximum input rotational speed(Grease) Permissible average input rotational speed(Grease) Backlash Weight Design life
Nm kgfm Nm kgfm Nm kgfm Nm kgfm r/min r/min Arc Sec Kg Hour
14 50 7 0.7 23 2.3 9 0.9 46 4.7 8500 3500 ≤20 0.66 10000
80 10 1 30 3.1 14 1.4 61 6.2 15000
100 10 1 36 3.7 14 1.4 70 7.2 15000
120 10 1 36 3.7 14 1.4 70 7.2 15000

Drawings

High Torque Aerospace Harmonic Drive Strain Wave Gearbox GeneratorHigh Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator

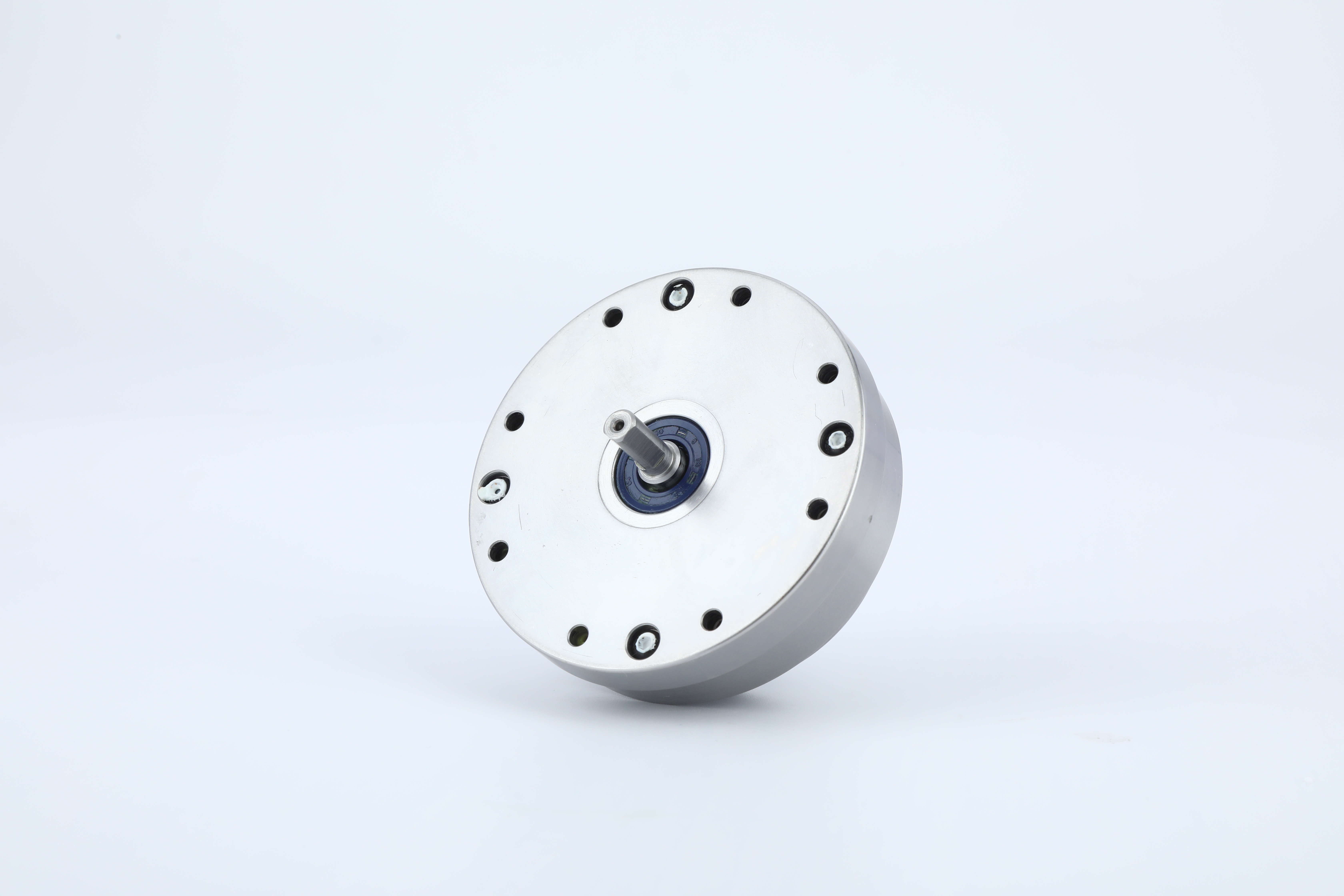

Detailed images

High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator

High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator

High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator

Key Attributes of LHT - IV Model 14 Harmonic Gear Units
Product Model 14 Harmonic Drive
Components
 Wave Generator, Flexspline, Circular Spline
Reduction Ratio
 50:1, 80:1, 100:1, 120:1
Backlash
 Less than 20 Arc Sec
Average Input Speed
 8500 r/min
Max Input Speed
 3500 r/min
Design Life
 15000 hours
Model
 14
Weight
 0.66kg
Warranty 1 Year

Applications

High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator
Industrial Robots Medical Devices Huamnoid Robots
High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator High Torque Aerospace Harmonic Drive Strain Wave Gearbox Generator
Aerospace Manufacturing Systems Semiconductor system
